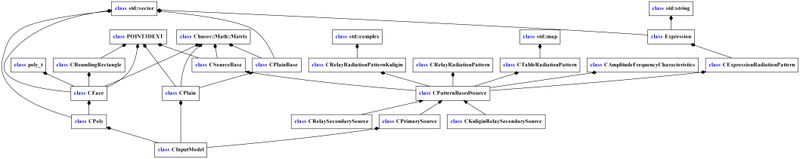

Файл:Arch ac inclusions.jpg

Код omcd:

CLASS_BEGIN(CPlainBase)
CLASS_END
CLASS_BEGIN(CPlain)
CLASS_END
CLASS_BEGIN(CSourceBase)
CLASS_END
CLASS_BEGIN(CPatternBasedSource)
CLASS_END
CLASS_BEGIN(CPrimarySource)
CLASS_END
CLASS_BEGIN(CKuliginRelaySecondarySource)
CLASS_END
CLASS_BEGIN(CRelaySecondarySource)
CLASS_END
CLASS_BEGIN(CExpressionRadiationPattern)
CLASS_END
CLASS_BEGIN(CRelayRadiationPattern)
CLASS_END
CLASS_BEGIN(Expression)
CLASS_END
CLASS_BEGIN(CTableRadiationPattern)
CLASS_END
CLASS_BEGIN(CRelayRadiationPatternKuligin)
CLASS_END
CLASS_BEGIN(CAmplitudeFrequencyCharacteristics)
CLASS_END
CLASS_BEGIN(CBoundingRectangle)
CLASS_END
CLASS_BEGIN(CPoly)
CLASS_END
CLASS_BEGIN(CFace)
CLASS_END
CLASS_BEGIN(CInputModel)
CLASS_END
CLASS_BEGIN(std::vector)
CLASS_END
CLASS_BEGIN(std::map)
CLASS_END
CLASS_BEGIN(std::complex)
CLASS_END
CLASS_BEGIN(std::string)
CLASS_END
CLASS_BEGIN(poly_t)
CLASS_END
CLASS_BEGIN(Chusov::Math::Matrix)
CLASS_END
CLASS_BEGIN(POINT3DEXT)
CLASS_END

NODE_NAME(CPlainBase) -> NODE_NAME(std::vector) [COMPOSITION]
NODE_NAME(CPlainBase) -> NODE_NAME(Chusov::Math::Matrix) [COMPOSITION]
dnl NODE_NAME(CPlainBase) -> NODE_NAME(std::basic_string) [COMPOSITION]
dnl NODE_NAME(CPlainBase) -> NODE_NAME(Chusov::Memory::ci_char_traits) [COMPOSITION]
dnl NODE_NAME(CPlainBase) -> NODE_NAME(std::allocator) [COMPOSITION]
NODE_NAME(CPlain) -> NODE_NAME(CPlainBase) [INHERITANCE]
NODE_NAME(CPlain) -> NODE_NAME(POINT3DEXT) [COMPOSITION]
NODE_NAME(CPlain) -> NODE_NAME(Chusov::Math::Matrix) [COMPOSITION]
dnl NODE_NAME(CPlain) -> NODE_NAME(std::mutex) [COMPOSITION]

NODE_NAME(CSourceBase) -> NODE_NAME(POINT3DEXT) [COMPOSITION]
NODE_NAME(CSourceBase) -> NODE_NAME(Chusov::Math::Matrix) [COMPOSITION]
NODE_NAME(CPatternBasedSource) -> NODE_NAME(CSourceBase) [INHERITANCE]
NODE_NAME(CPatternBasedSource) -> NODE_NAME(CAmplitudeFrequencyCharacteristics) [COMPOSITION]
NODE_NAME(CPatternBasedSource) -> NODE_NAME(CExpressionRadiationPattern) [COMPOSITION]
NODE_NAME(CPatternBasedSource) -> NODE_NAME(CRelayRadiationPatternKuligin) [COMPOSITION]
NODE_NAME(CPatternBasedSource) -> NODE_NAME(CRelayRadiationPattern) [COMPOSITION]
NODE_NAME(CPatternBasedSource) -> NODE_NAME(CTableRadiationPattern) [COMPOSITION]

NODE_NAME(CPrimarySource) -> NODE_NAME(CPatternBasedSource) [INHERITANCE]
NODE_NAME(CKuliginRelaySecondarySource) -> NODE_NAME(CPatternBasedSource) [INHERITANCE]
NODE_NAME(CRelaySecondarySource) -> NODE_NAME(CPatternBasedSource) [INHERITANCE]

NODE_NAME(CExpressionRadiationPattern) -> NODE_NAME(Expression) [COMPOSITION]
NODE_NAME(Expression) -> NODE_NAME(std::string) [COMPOSITION]
NODE_NAME(Expression) -> NODE_NAME(std::vector) [COMPOSITION]
NODE_NAME(CTableRadiationPattern) -> NODE_NAME(std::map) [COMPOSITION]
NODE_NAME(CRelayRadiationPatternKuligin) -> NODE_NAME(std::complex) [COMPOSITION]

NODE_NAME(CPoly) -> NODE_NAME(std::vector) [COMPOSITION]
NODE_NAME(CPoly) -> NODE_NAME(CFace) [COMPOSITION]

NODE_NAME(CFace) -> NODE_NAME(poly_t) [COMPOSITION]
NODE_NAME(CFace) -> NODE_NAME(Chusov::Math::Matrix) [COMPOSITION]
NODE_NAME(CFace) -> NODE_NAME(POINT3DEXT) [COMPOSITION]
NODE_NAME(CFace) -> NODE_NAME(std::vector) [COMPOSITION]
NODE_NAME(CFace) -> NODE_NAME(CBoundingRectangle) [COMPOSITION]

NODE_NAME(CBoundingRectangle) -> NODE_NAME(POINT3DEXT) [COMPOSITION]

NODE_NAME(CInputModel) -> NODE_NAME(CPlain) [COMPOSITION]
NODE_NAME(CInputModel) -> NODE_NAME(CPrimarySource) [COMPOSITION]
NODE_NAME(CInputModel) -> NODE_NAME(CPoly) [COMPOSITION]
